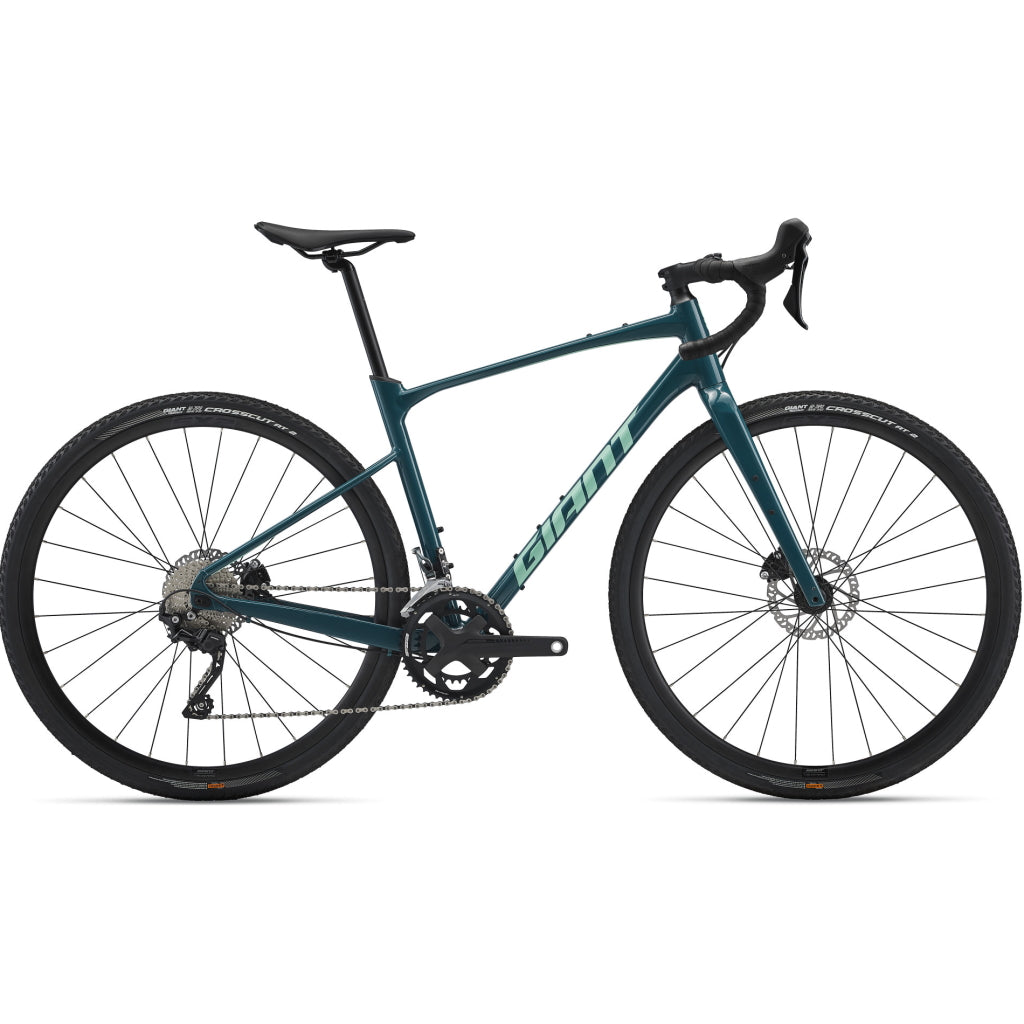

Gravel Bike - Giant Revolt 1
YOU CAN RIDE ON ROADS, GRAVEL OR OFF-ROAD WITH THIS NEW ALUMINUM ALL-ROUNDER. A CARBON FORK ENSURES A SMOOTH RIDE AND A FLIP-CHIP DROPOUT ALLOWS YOU TO ADJUST WHEELBASE AND TIRE CLEARANCE
The concept of “gravel biking” has different meanings for different people. But whether you ride dirt roads, trails, gravel or a mix of all, the challenges are the same. You want a bike that adapts to the circumstances, where you stay in control and still feel comfortable even after long days in the saddle.
The new Revolt gives you all that. The all-new Revolt features a lightweight ALUXX aluminum frame with a revised gravel geometry that provides more stability through a longer reach and a lower bottom bracket. A flip-chip on the rear dropout adjusts wheelbase and tire clearance, and you can choose the included D-Fuse seatpost for maximum compliance, or upgrade to a 30.9mm round or dropper post. The frame is designed for disc brakes and has room for larger tires up to 53 mm.
The frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, a shorter stem and a lower bottom bracket drop improve stability on rough terrain.
The new frame features a lower seatstay transition and smaller diameter tubing to absorb road shock and vibration. The D-Fuse handlebar and seatpost work as a system to increase compliance without sacrificing stiffness when cornering, sprinting or climbing.
Adaptable to any terrain
The wheelbase can be adjusted with a flip-chip on the rear dropout: short for more agile handling or long for more stability on rough roads and gravel. The long setting allows the use of tires up to 53mm wide. You can choose the included D-Fuse seatpost for maximum compliance, or upgrade to a 30.9mm round or dropper post.
|Frame||AluxX frame, Flip Chip dropout, 12x142 mm Max. tire clearance: 45mm (short), 53mm (long)|
|Fork||Advanced full carbon fork, OD1 steerer, 12x100 mm|
|handlebars||GIANT Contact XR D-Fuse|
|seat post||GIANT D-Fuse, 30.9mm supports compatible|
|shifter||Shimano GRX RX-400, 2-speed|
|rear derailleur||Shimano GRX RX-400, 10-speed|
|brakes||Shimano BR-RX400 HRD, 160mm|
|brake lever||Shimano GRX RX-400 HRD|
|cassette||Shimano Tiagra CS-HG500, 11-34T|
|crankset||FSA Omega Adventure, 48/32T chainrings|
|bottom bracket||FSA Mega EXO|
|rims||GIANT S-X2 Disc, Tubeless Ready|
|hubs (f/r)||GIANT S-X2 Disc|
|spokes||GIANT S-X2 Disc|
|Tires||GIANT CrossCut AT2, 700x38c, Tubeless Ready, 30 TPI Delivery tubeless|
